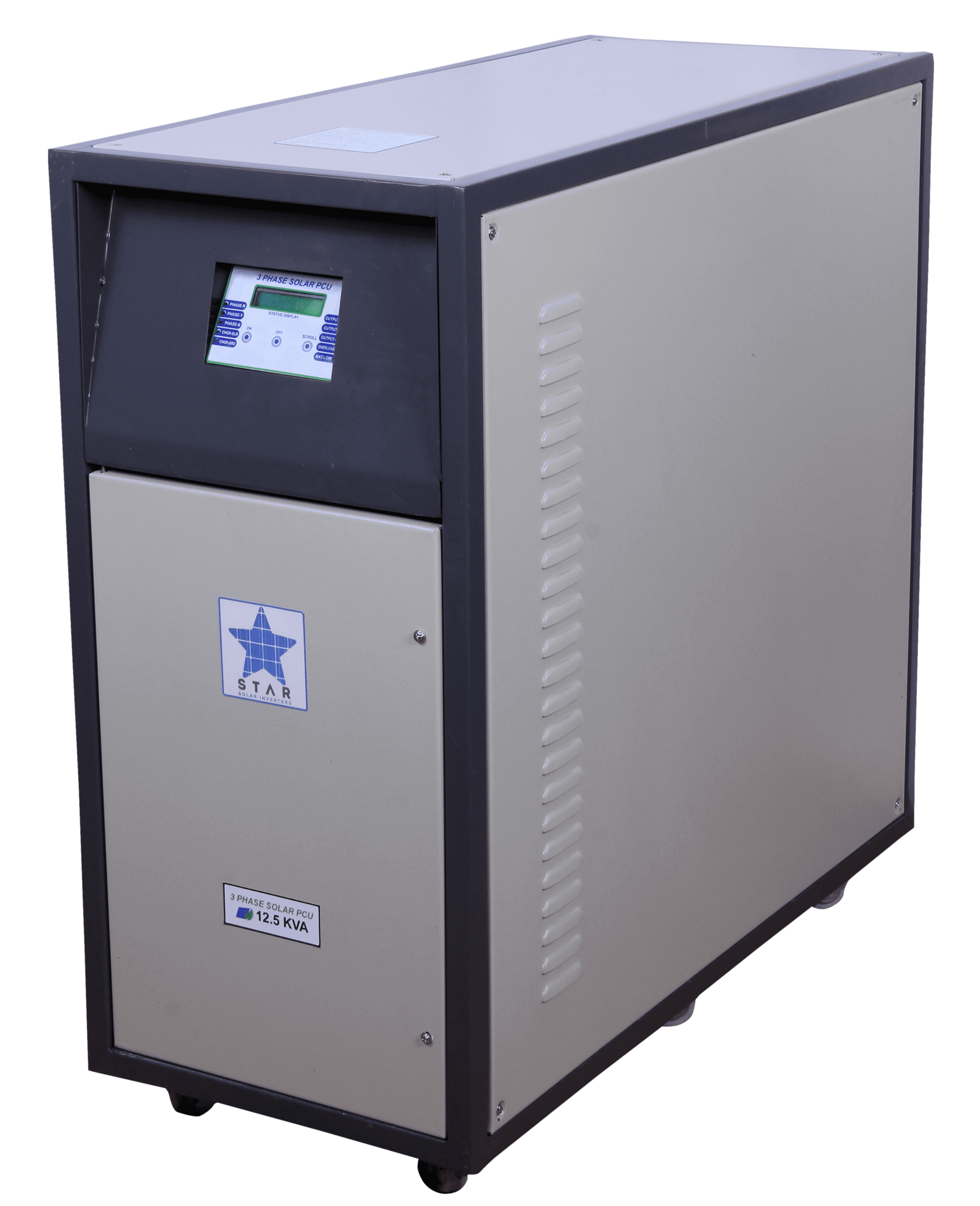

| Rating KVA |
10KVA |
20KVA |
25KVA |
30KVA |
| O/P Capacity KW |
8KW |
16KW |
20KW |
24KW |
| Solar Panels Max Supported |
10KW |
20KW |
25KW |
25KW |
| Solar MPPT Charger Rating |
75A |
| Battery VDC |
240Vdc |
| Voc |
450V/600V(optional) |
| Switching By |
IGBT |
| Nominal Output Voltage |
L-L 400 V AC +/- 2% /230 V AC L-N |
| User Selection Mode |
INVERTER Mode |
| Mains Input |
| Acceptable Voltage Range |
170-280Vac Per Phase L-N |
| Voltage Range Frequency |
Same as Mains input (50HZ +/- 5% ) |
| Voltage Range Input/Output Vector |
Star/Star 4Wire/4Wire System |
| Voltage Range Charging Current |
3A - 15A +/- 10% |
| Max Mains to Inverter Change Over Time |
≤ 3 Sec |
| Max Inverter to Mains Change Over Time |
≤ 1 Sec |
| Output |
| Voltage Regulation On Mains |
Same as Follows Input |
| Voltage Regulation in Battery mode |
230V AC Nominal +/-2%(Range 210-240V selectable) Per Phase L-N |
| Frequency Regulation Mains Mode |
Same as Mains input |
| Frequency Regulation Bettery Mode |
50Hz ±0.1HZ ( +/- 3Hz ) |
| Wave Form |
Pure Sine Wave |
| Power Factor |
0.8 |
| THD V |
at linear load < 5% |
| Efficiency |
≥85% { peak efficiency of inverter ≥90%} |
|
| Crest Factor |
3:1 |
| Protections |
| Over Load |
For 100% Load Buzzer Indication, 101% above Load Trips and Retry for 4times then Inverter shutsdown {> 110% -< 150% for 5 Minutes to 16 Sec, ≥ 150% - < 200% For 15 Sec to 5 Sec, ≥ 200% < 300% For 4Sec to 2 Sec, >300% for 1 Second}
|
| Over Load |
(Inverter Over Voltage, Inverter OverLoad, Inverter Temperature, PV Under / Over Voltage Cutt - OFF, Battery Reverse Polarity Protection, Mains Under/Over Frequency, Mains Under/Over Voltage, Battery Under Voltage, Short circuit Protection,Surge protection, Anti - IseLanding
|
| Output Short Circuit |
Circuit Breaker On Mains, Shutdown on Inverter |
| Battery Reverse Protection |
Circuit Breaker |
| Low Battery |
Load Disconnection |
| Thermal Shutdown |
Unit inside Temperature at 90:C |
| Lightening/Surge |
Protected upto 4KV Surge |
| Solar Reverse |
Blocking Diode is provided to Prevent reverse flow of current |
| Current Limiting for battery Charging |
Available 10A-50A |
|
| Battery Charging Current |
Optional Battery current limit during low load on solar panel. |
|
| BATTERY PARAMETERS |
| NOMINAL DC VOLTAGE 240Vdc |
| DC LOW BATTERY VOLTAGE cut 220+/-2V |
| DC Low Voltage Warning 230+/-2V |
| DC BOOST VOLTAGE 292 +/-2V |
| DC VOLTAGE HIGH CUT 320+/-2V |
| Charging |
| Charging Switch OFF |
It will charge form solar. |
| Charging Switch ON |
It will charge from grid when solar charging current is Low. |
| Environmental |
| Operating Ambient Temperature |
-10:C to 50:C {0°C TO 45°C} |
| Relative Humidity |
0-95% { 0 TO 95% - Non Condensing} |
|
| LED Display |
Input Mains RYB ,Charging On GRID,Charging On Solar,Output MAINS RYB,Overload,Low Battery (Mains ON,Alarm ON, Buzzer Mute)
|
| LCD Display |
Battery Voltage; I/P Voltage;I/P Frequency;O/P Voltage; Grid Charging Current; Solar Voltage; Solar Charging Current; Solar Units Saved KWH(up to 999.9Units); Load %; Over Load; Battery Low; UPS/INV Mode (SCROLLING) {20x4 line lcd}
|
| Acoustic Noise(At one meter) |
≤65db
|
| Operating Temperature |
(-10 Deg C to 50 Deg C)
|
| Storage Temperature |
0-50°C
|
|
| Features |
|
(Three Stage battery charging for better battery Life, Battery current Limiting, Temp Compensation
|
|
for VRLA Type Battery, Battery Type Supported - Lead Acid tubular, VRLA
|
|
Inbuit Data Logging, GPRS Mounting of all Parameters(OPTIONAL)
|
|
| Circuit Breaker |
(Solar Input, Battery Input, Grid Input and Load)
|
