TECHNICAL SPECIFICATION FOR SOLAR INVERTER WITH MPPT SOLAR CHARGER

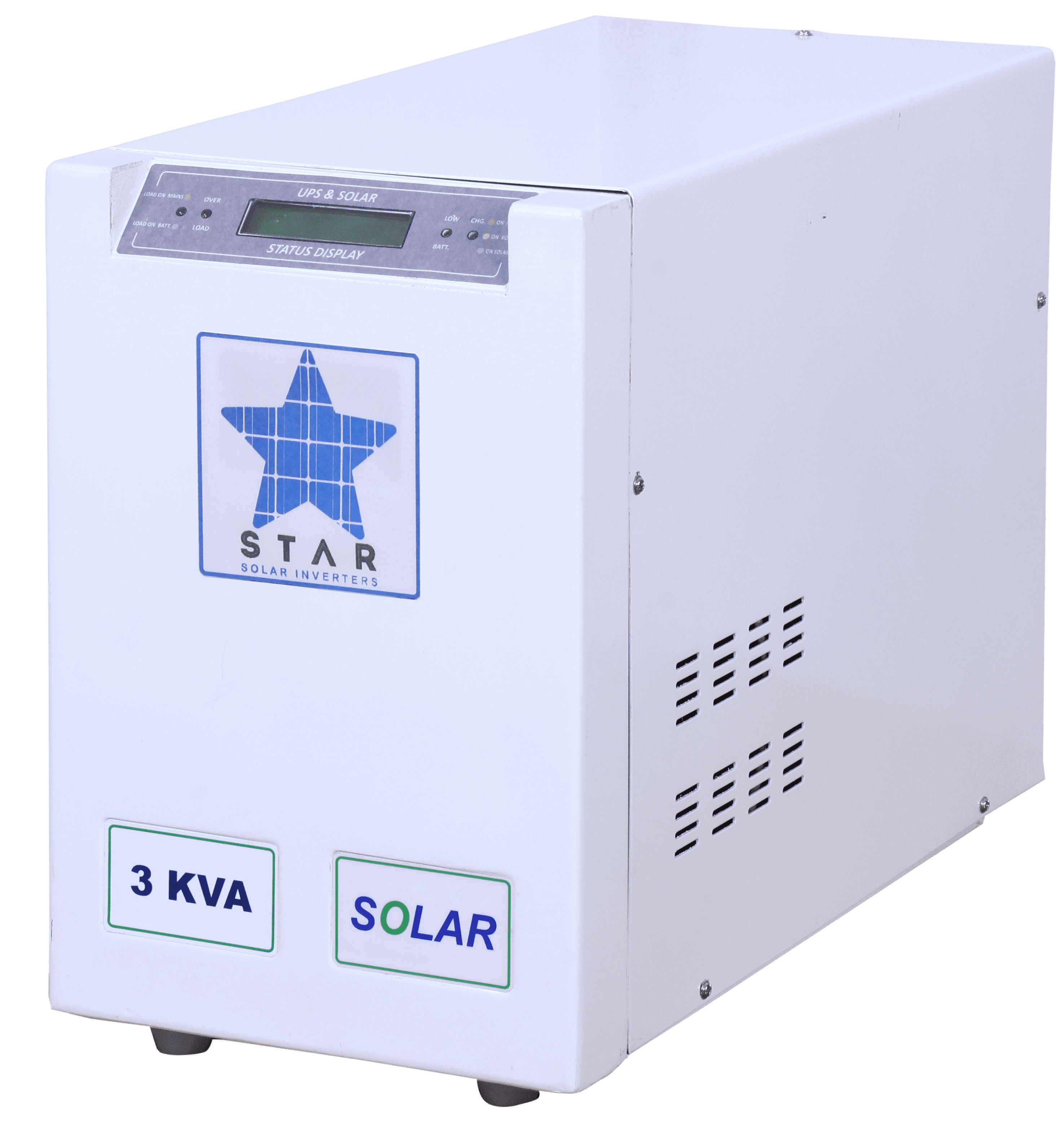

Rating 1.2KVA 2KVA 3KVA
Output Power 1000W 1600W 2400W
Solar Panel Capacity Max 1000W 1500W 2000W
Battery VDC 24V DC 48V DC 24V DC 48V DC 48V DC
Battery
Battery Low Cut-Off 21.6V ± 0.2V 43.2V ± 0.2V 21.6V ± 0.2V 43.2V ± 0.2V
Low Battery Recovery 24V ± 0.2V 48V ± 0.2V 24V ± 0.2V 48V ± 0.2V
Battery High Cut off on Mains 28.8V ± 0.2V 57.6V ± 0.2V 28.8V ± 0.2V 57.6V ± 0.2V
Battery High Cut off on Solar 29.2V ± 0.2V 58.4V ± 0.2V 29.2V ± 0.2V 58.4V ± 0.2V
Battery Solar Reconnect 24V ± 0.2V 48V ± 0.2V 24V ± 0.2V 48V ± 0.2V
Battery Float Voltage 27.6 ± 0.2V 55.2 ± 0.2V 27.6 ± 0.2V 55.2 ± 0.2V
Solar /MPPT Voc Range 40V - 90V 70 - 150V 40V - 90V 70 - 150V
Solar Charger Capacity 30A
Switching by MOSFETS
Nominal Output Voltage 220/230/240V AC
User Selection Mode UPS Mode Inverter Mode
Input
Acceptable Voltage Range 180 - 265Vac 110 - 290Vac
Voltage Range Frequency 50Hz
Output
Voltage Regulation On Mains Follows Input
Voltage Regulation in Battery mode 220V AC Nominal +/-2%
Frequency Regulation Mains Mode Same as Mains input
Frequency Regulation Bettery Mode 50Hz ± 0.1HZ
Wave Form Pure Sine Wave
Power factor 0.8
V THD % < 5%
Efficiency 85% ± 3%
Protections
Over Load For 100% -105% Load Buzzer Indication, 105% above Load Trips and Retry for 4times then Inverter shutdown
Output Short Circuit Circuit Breaker On Mains, Shutdown on Inverter
Battery Reverse Protection Fuse / Circuit Breaker
Low Battery Load Disconnection
Lightening/Surge Protected upto 4KV/6KA Surge
Solar Reverse Blocking Diode is provided to Prevent reverse flow of current
Shared Charging On priority it will charge from solar only as long as it is giving sufficient current.
When Solar Current is drops to below set point, then shared charging is activated and the balance current it will charge from Grid.
Priority
Grid Priority In this Mode it will charge the battery form Solar + Grid in Sharing
Grid charging starts only when Solar Current is less than set value
It will shifts to battery mode if battery is full from solar(i.e14.4VDC for 12V system)
Solar Priority In this mode it will charge the Battery only from Solar
When Battery is completely discharged, Solar is not available then only it will connect to Grid and Shared charging is activated till the Battery is Full.
Environmental
Operating Temperature 0°C to 50°C
Relative Humidity 0 - 95%
LED Display Mains ON(RED);Charging On Mains(RED),Charging On Solar(GREEN), Duo(YELLOW); Inverter(GREEN); Battery Low(YELLOW);Overload/Short Circuit(YELLOW)
LCD Display Batter Voltage; I/P Voltage;I/P Frequency;O/P Voltage; Grid Charging Current; Solar Voltage; Solar Charging Current; Solar Units Saved KWH(up to 999.9Units); Grid Priority/Solar Priority; Load %; Over Load; Battery Low; UPS/INV Mode

TECHNICAL SPECIFICATION FOR SOLAR INVERTER WITH MPPT SOLAR CHARGER

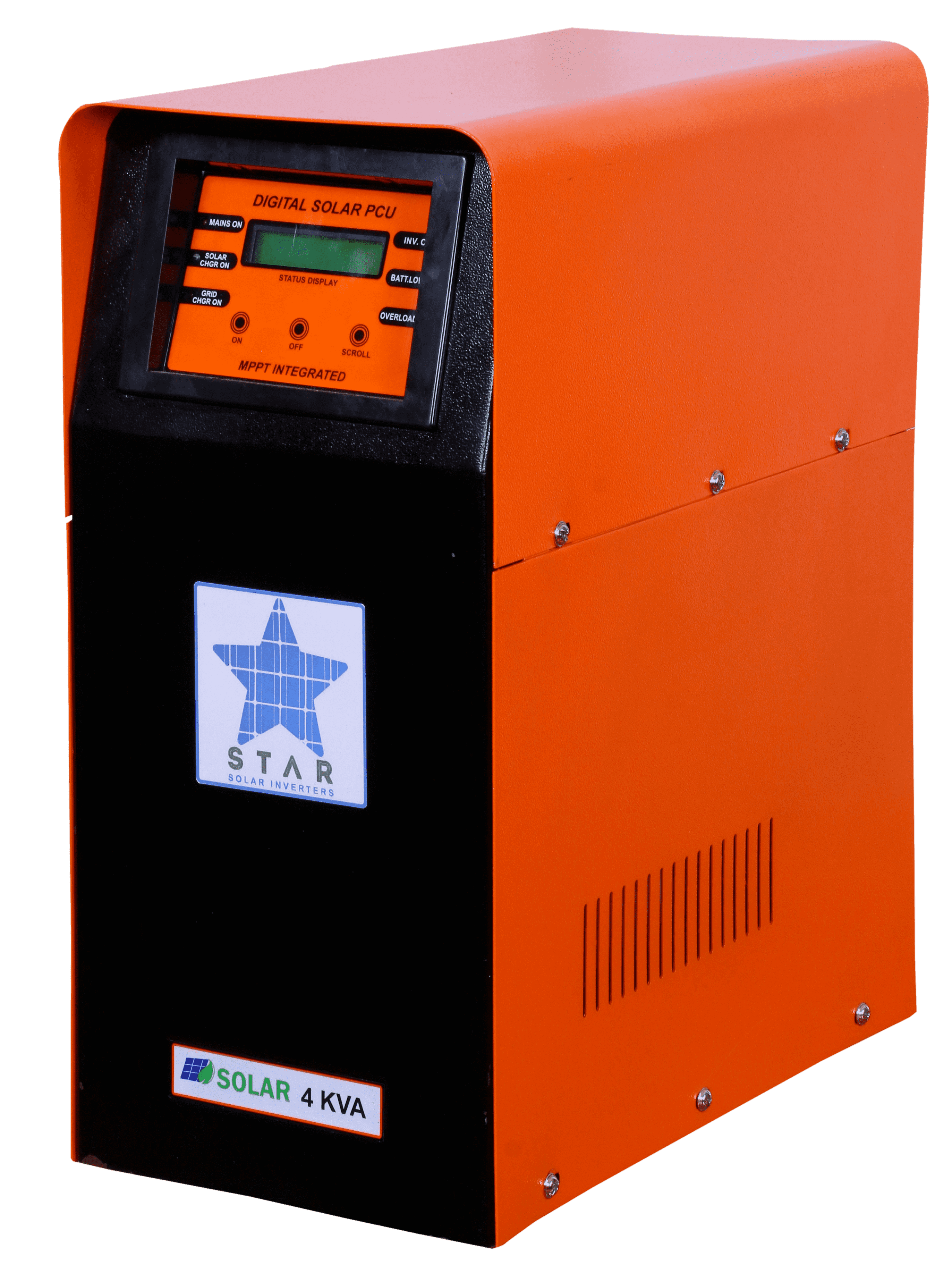

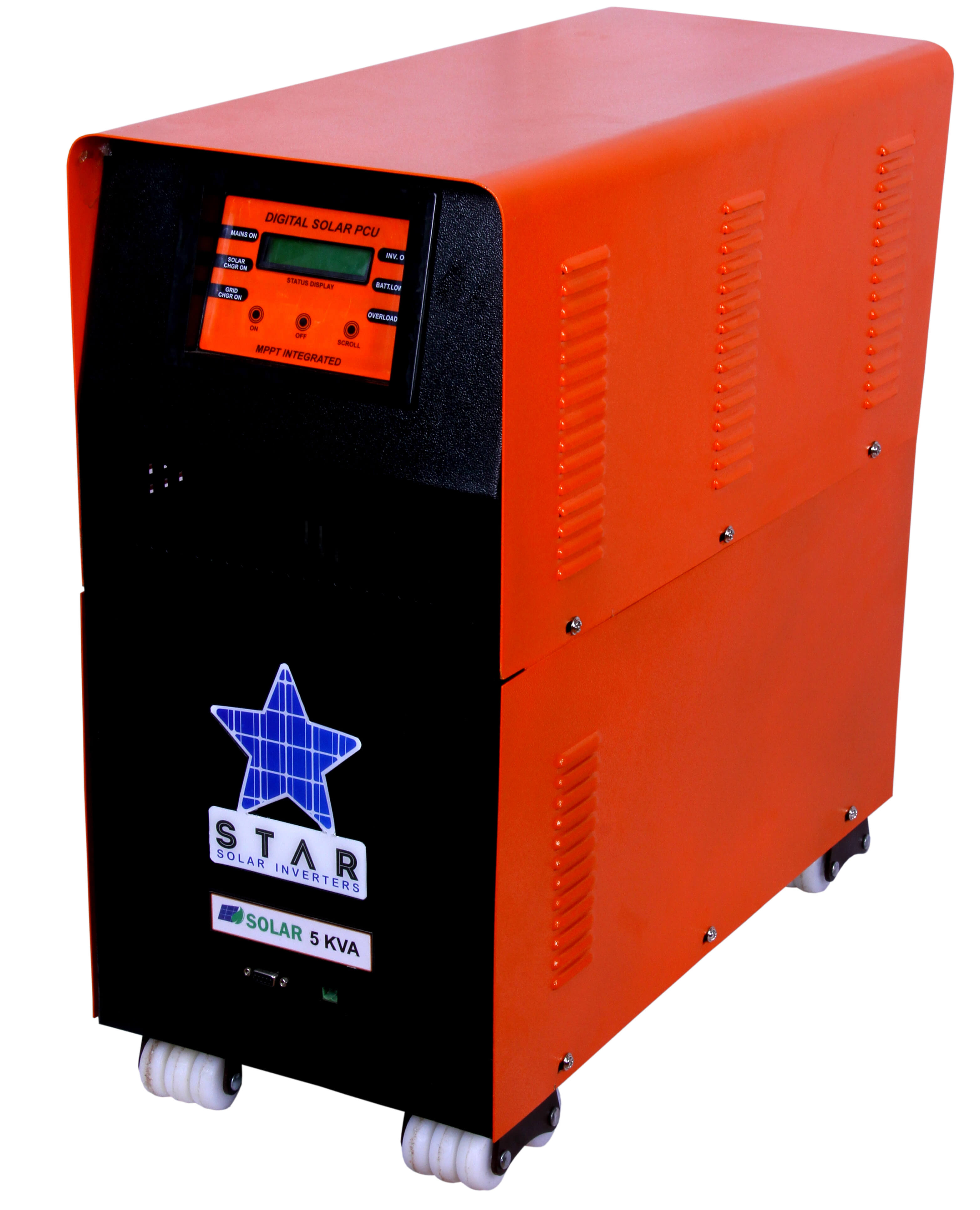

Rating 4KVA 5KVA
Output Power 3000W 4000W
Battery VDC 48V DC
Solar Panel Capacity Max 3000W
Solar /MPPT Voc Range 70-150V 80-180V
Solar Charger Capacity 50A 60A
Switching by MOSFETS
Nominal Output Voltage 220/230/240V AC
User Selection Mode UPS Mode Inverter Mode
Input
Acceptable Voltage Range 180 - 265Vac 110 - 290Vac
Voltage Range Frequency 50Hz
Output
Voltage Regulation On Mains Follows Input
Voltage Regulation in Battery mode 220V AC Nominal +/-2%
Frequency Regulation Mains Mode Same as Mains input
Frequency Regulation Bettery Mode 50Hz ± 0.1HZ
Wave Form Pure Sine Wave
Power factor 0.8
V THD % < 5%
Efficiency ≥85%
Battery
Battery Low Cut-Off 43.2V ± 0.2V
Low Battery Recovery 48V ± 0.2V
Battery High Cut off on Mains 57.6V ± 0.2V
Battery High Cut off on Solar 58.4V ± 0.2V
Battery Solar Reconnect 48V ± 0.2V
Battery Float Voltage 55.2 ± 0.2V
Protections
Over Load For 100% Load Buzzer Indication, 101% above Load Trips and Retry for 4times then Inverter shutdown
Output Short Circuit Circuit Breaker On Mains, Shutdown on Inverter
Battery Reverse Protection Fuse / Circuit Breaker
Low Battery Load Disconnection
Thermal Shutdown Below 0°C and Above 93⁰C
Lightening/Surge Protected upto 4KV Surge
Solar Reverse Blocking Diode is provided to Prevent reverse flow of current
Shared Charging On priority it will charge from solar only as long as it is giving sufficient current.
When Solar Current is drops to below set point, then shared charging is activated and the balance current it will charge from Grid.
Priority
Grid Priority In this Mode it will charge the battery form Solar + Grid in Sharing
Grid charging starts only when Solar Current is less than set value
It will shifts to battery mode if battery is full from solar(i.e14.4VDC for 12V system)
Solar Priority In this mode it will charge the Battery only from Solar
When Battery is completely discharged, Solar is not available then only it will connect to Grid and Shared charging is activated till the Battery is Full.
Environmental
Operating Temperature -10⁰C to 50⁰C
Relative Humidity 0 - 95%
LED Display Mains ON ; Solar Charger ON ; Grid Charger ON ; Inverter On ; Battery Low ; Overload
LCD Display Batter Voltage; I/P Voltage;I/P Frequency;O/P Voltage; Grid Charging Current; Solar Voltage; Solar Charging Current; Solar Units Saved KWH(up to 999.9Units); Grid Priority/Solar Priority; Load %; Over Load; Battery Low; UPS/INV Mode

SOLAR 1Ph INVERTER TECHNICAL SPECIFICATION WITH MPPT SOLAR CHARGER

Rating 5KVA 6KVA 7.5KVA 7.5KVA
Output Power 4KW 5KW 6KW 6KW
Battery VDC 96 96 96 120V
Solar Panel Capacity Max 5KW 6KW 7.5KW 7.5KW
Battery
Battery Low Cut-Off VDC 86.4 ± 0.2V 109 ± 0.2V
Low Battery Recovery VDC 96 ± 0.2V 120 ± 0.2V
Battery High Cut off on Mains VDC 115.2 ± 0.2V 144 ± 0.2V
Battery High Cut off on Solar VDC 116.8 ± 0.2V 146 ± 0.2V
Battery Float Voltage 109.6 ± 0.2V 137 ± 0.2V
Load Reconnect to mains VDC 96 ± 0.2V 120 ± 0.2V
Solar/MPPT Voc Max 450V
Solar Charger Capacity 50A
Switching by IGBT
Nominal Output Voltage 220/230/240V AC
Input
Acceptable Voltage Range 110 - 290V AC
Voltage Range Frequency 50Hz
Output
Voltage Regulation On Mains Follows Input
Voltage Regulation in Battery mode 220V AC Nominal +/-2%
Frequency Regulation Mains Mode Same as Mains input
Frequency Regulation Bettery Mode 50Hz ± 0.1HZ
Wave Form Pure Sine Wave
Power factor 0.8
V THD % < 5%
MPPT Charger Efficiency ≥95%
Inverter Efficiency ≥85%
Protections
Over Load For 100% -105% Load Buzzer Indication, 105% above Load Trips and Retry for 4times then Inverter shutdown
Output Short Circuit Circuit Breaker On Mains, Shutdown on Inverter
Battery Reverse Protection Circuit Breaker
Low Battery Load Disconnection
Thermal Shutdown Below 0°C and Above 85⁰C
Lightening/Surge Protected upto 4KV Surge
Solar Reverse Blocking Diode is provided to Prevent reverse flow of current
Current Limiting for battery Charging Available
Battery Charging Current Battery current limit during low load on solar panel
Charging switch OFF It will charges form solar.
Charging switch ON It will charges from grid when solar charging current is Low
Environmental
Operating Temperature 0°C to 50°C
Relative Humidity 0 - 95%
Priority Grid or Solar
LED Display Mains,Charger,Output,Fault
LCD Display Batter Voltage; I/P Voltage;I/P Frequency;O/P Voltage; Grid Charging Current; Solar Voltage; Solar Charging Current; Solar Units Saved KWH(up to 999.9Units); Load %; Over Load; Battery Low; UPS/INV Mode

SOLAR 1Ph INVERTER TECHNICAL SPECIFICATION WITH MPPT SOLAR CHARGER

Rating 10KVA 10KVA 12.5KVA 15KVA 20KVA
Output Power 8KW 8KW 10KW 12.5KW 16KW
Battery VDC 120 240 240 240 240
Solar Panel Capacity Max 10KW 10KW 12.5KW 16KW 20KW
Battery
Battery Low Cut-Off VDC 109 ± 0.2V 216 ± 0.2V
Low Battery Recovery VDC 120 ± 0.2V 240 ± 0.2V
Battery High Cut off on Mains VDC 144 ± 0.2V 288 ± 0.2V
Battery High Cut off on Solar VDC 146 ± 0.2V 292 ± 0.2V
Battery Float Voltage VDC 137 ± 0.2V 274 ± 0.2V
Loads Reconnect to mains VDC 120 ± 0.2V 240 ± 0.2V
Solar/MPPT Voc Max 450V 450V (Default) - 600V (Optional)
Solar Charger Capacity 50A
Switching by IGBT
Nominal Output Voltage 220/230/240V AC
Input
Acceptable Voltage Range 110 - 290V AC
Voltage Range Frequency 50Hz
Output
Voltage Regulation On Mains Follows Input
Voltage Regulation in Battery mode 220V AC Nominal +/-2%
Frequency Regulation Mains Mode Same as Mains input
Frequency Regulation Bettery Mode 50Hz ± 0.1HZ
Wave Form Pure Sine Wave
Power factor 0.8
V THD % < 5%
MPPT Charger Efficiency ≥95%
Inverter Efficiency ≥85%
Protections
Over Load For 100% Load Buzzer Indication, 101% above Load Trips and Retry for 4times then Inverter shutdown
Output Short Circuit Circuit Breaker On Mains, Shutdown on Inverter
Battery Reverse Protection Circuit Breaker
Low Battery Load Disconnection
Thermal Shutdown Below 0°C and Above 85⁰C
Lightening/Surge Protected upto 4KV Surge
Solar Reverse Blocking Diode is provided to Prevent reverse flow of current
Current Limiting for battery Charging Available
Battery Charging Current Battery current limit during low load on solar panel
Charging switch OFF It will charges form solar.
Charging switch ON It will charges from grid when solar charging current is Low
Environmental
Operating Temperature 0°C to 50°C
Relative Humidity 0 - 95%
Priority Grid or Solar
LED Display Mains,Charger,Output,Fault
LCD Display Batter Voltage; I/P Voltage;I/P Frequency;O/P Voltage; Grid Charging Current; Solar Voltage; Solar Charging Current; Solar Units Saved KWH(up to 999.9Units); Load %; Over Load; Battery Low; UPS/INV Mode
